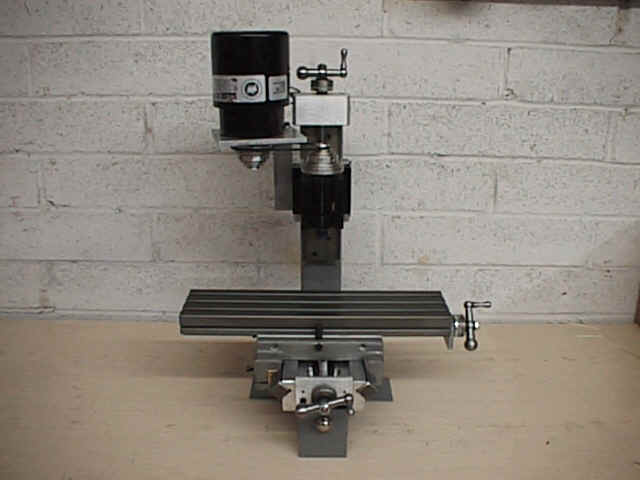

The Manual MicroMill.
Machine Features:
- Steel and Aluminum construction.
- Ground steel sliding ways, hard anodized table with adjustable brass gibs.
- Dial indicators with 0.001" graduations and zero adjust.
- Counterbalanced handwheel cranks.
- Lead screws on all axes: 1/2" - 20 pitch.
- 1/10 HP Spindle motor.
- Spindle speed of 525 to 5300 RPM set with 6 step pulley.
- Travel: X = 9", Y = 5.75", Z = 6".
- Column rotation of +- 45 deg.
- Headstock configurable for Horizontal Milling.
- Dimensions: Height = 21", Width = 17", Depth = 17".
- Total Weight: 80 lbs.
Pricing
Description |
Price |
|---|---|
| Manual MicroMill | $629.00 |
| with NEMA 23 motor mounts and couplings. | $829.00 |
