VSS TaigTurn 2000AB



Home
Up

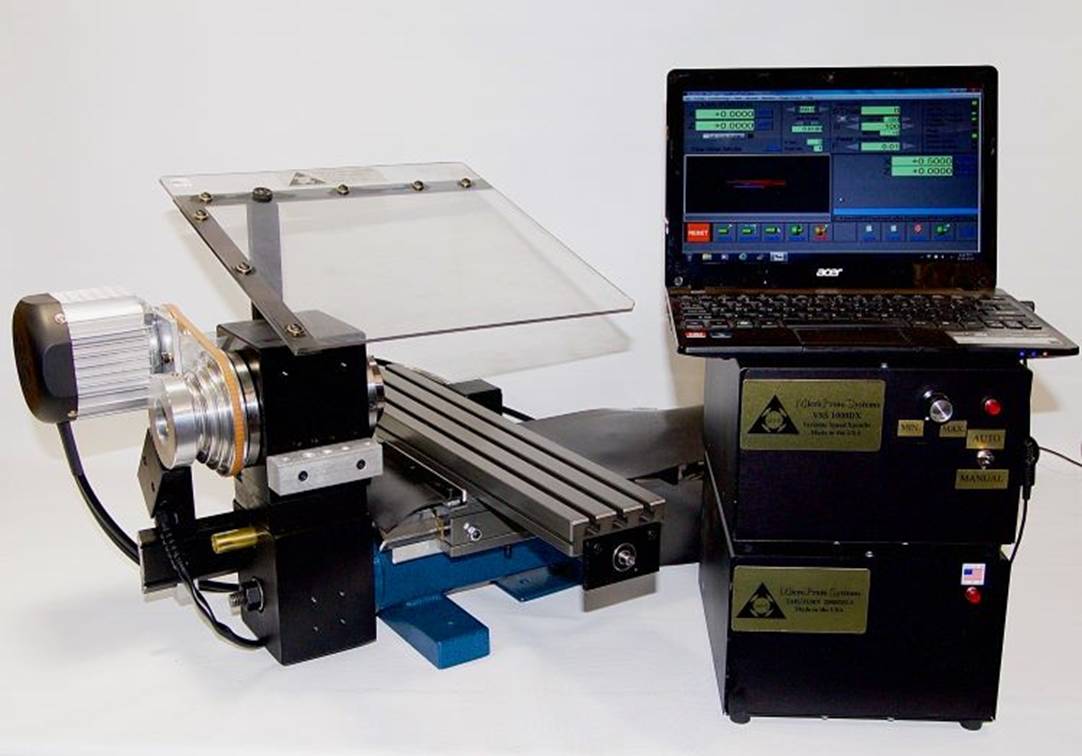

VSS TaigTurn 2000AB - 5C (shown with Laptop computer - Not included)

Machine Features:

  • Position increment resolution 0.00025 in.

  • Mechanical repeatability < 0.0005 in.

  • Mechanical Backlash < 0.0005 in.

  • Rapid Traverse Speed up to 150 In/Min.

  • Single Point Thread Cutting Cycles up to 120 In/Min.

  • Windows XP,7,8 or 10 control interface (with USB module option).

  • Precision Heavy Duty 5C Spindle Headstock.

  • Powerful 3/4 HP Brushless DC Spindle Motor.

  • Spindle Speed Range: 150 to 2500 RPM.

  • Programmable Spindle Speed with standard S commands.

  • Direct Spindle Speed RPM readout on Mach 3 screen.

  • DISP (Digital Index Signal Processor) Module for precise Threading Cycles.

  • 12.0 mm Dia. / 2.5 mm pitch Ball Screws on all axes.

  • X, Z travel of 11.375" x 6".

  • Installed XZ Home Switch Assembly.

  •

    Pricing:

    Description

    Price

    VSS TaigTurn 2000AB-DSLS - 5C (Ball Screw version) System with Mach 3 Turn

    $4495.00

    USB Module Option: Win XP, 7,8 or 10 operation

    $150.00
