Control Module




Spindle and Auxiliary On/Off Control Module

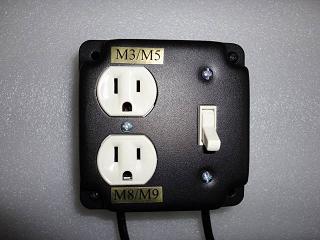

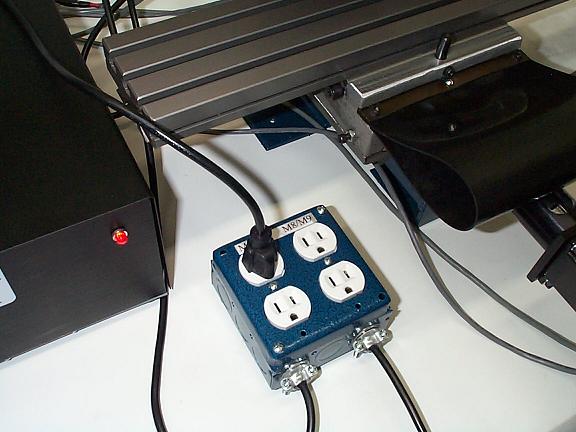

The control module allows the spindle and an auxiliary device to be turned on and off using standard M-codes.  M3 turns on the spindle while M5 turns it off.  Likewise, M8 turns on the auxiliary device (coolant, air, light, alarm, etc.) while M9 turns it off.  The control module cable plugs into the I/O port of the driver box while the power cord plugs into a standard 120 Vac outlet.
